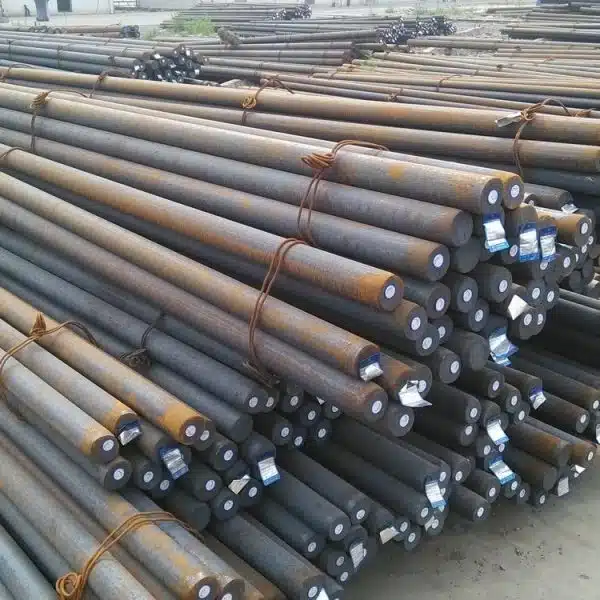

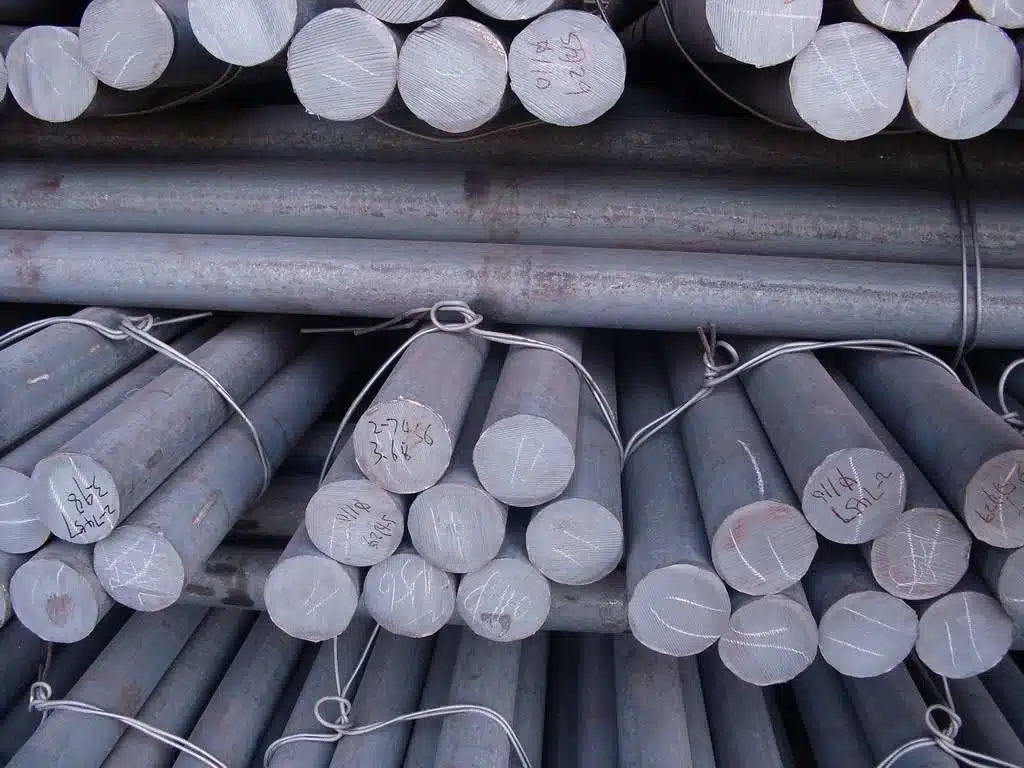

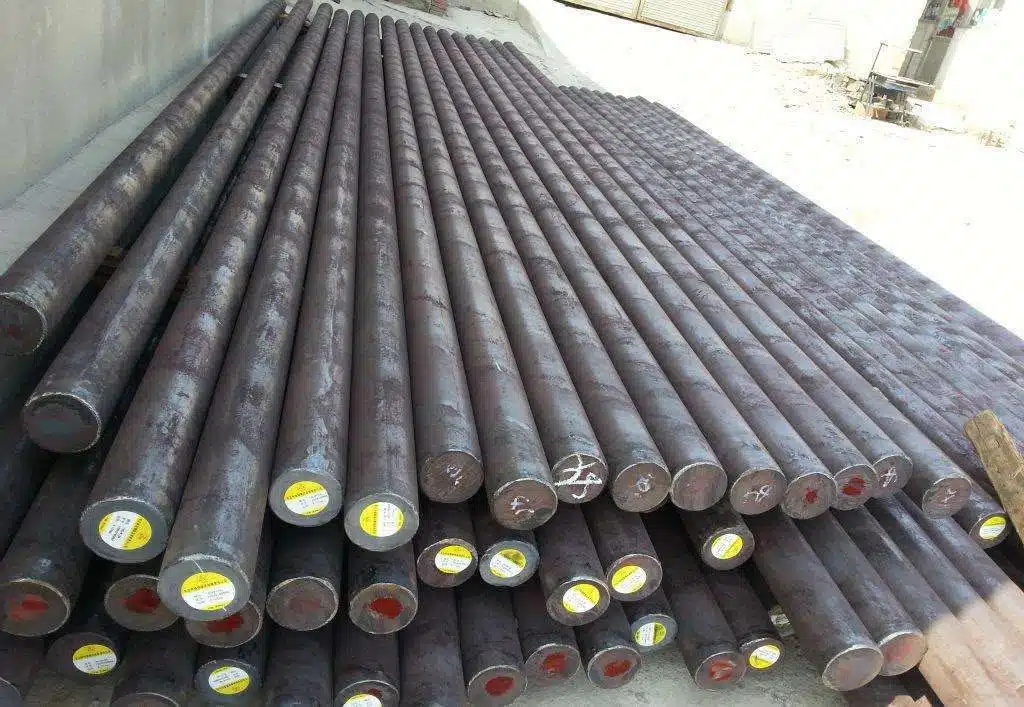

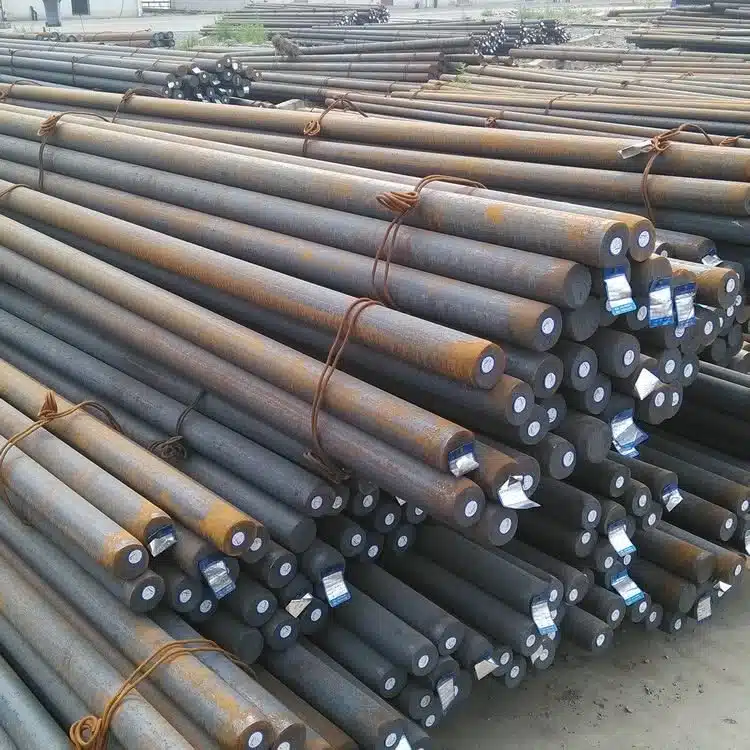

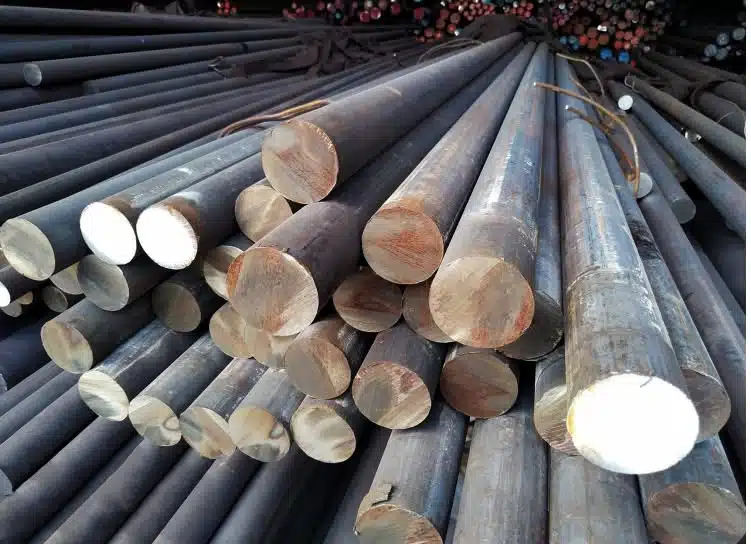

Grinding Steel RodsThe grinding steel rod can be ordered with the specific requirements of the customer. Our grinding steel rods are mainly used in metallurgy, mines, cement plants, thermal energy, chemical and other industries.Hardness: 25HRC to 60HRC
Tolerance: per meter for each Max.2mm grinding rod
Microstructure: bainite + perlite + carbide.
Unit consumption: 40% lower than untreated steel.
Characteristics of wear-resistant steel bar:
1. The raw materials of the wear-resistant grinding steel rods are ordered from the well-known steel mill, the quality of the products that are guaranteed.
2. The hardness of this new type of wear-resistant grinding steel rod can reach HRC25-35, HRC35-45, HRC45-60, HRC> 60.
3. Wear-resistant grinding steel rod can be ordered with customer’s requirements, the diameter, length and hardness can be produced with customer’s requirements, greatly improve the flexibility, but also reduce the production cost.
4. The wear-resistant grinding steel rod adopts the latest production technology, the wear resistance is increased considerably, it is not easy to mess up, its wear resistance is higher than the common bar on the market 4-6 times .
Grinding Steel Rod Classification and Chemical Composition
Tolerance: per meter for each Max.2mm grinding rod
Microstructure: bainite + perlite + carbide.
Unit consumption: 40% lower than untreated steel.
Characteristics of wear-resistant steel bar:
1. The raw materials of the wear-resistant grinding steel rods are ordered from the well-known steel mill, the quality of the products that are guaranteed.
2. The hardness of this new type of wear-resistant grinding steel rod can reach HRC25-35, HRC35-45, HRC45-60, HRC> 60.
3. Wear-resistant grinding steel rod can be ordered with customer’s requirements, the diameter, length and hardness can be produced with customer’s requirements, greatly improve the flexibility, but also reduce the production cost.
4. The wear-resistant grinding steel rod adopts the latest production technology, the wear resistance is increased considerably, it is not easy to mess up, its wear resistance is higher than the common bar on the market 4-6 times .
Grinding Steel Rod Classification and Chemical Composition
| Name | C | Mn | Si | S | P | Cr |
| GY-03-60Mn | 0.57-0.65 | 0.70-1.10 | 0.17-0.37 | 0.05max | 0.05max | 0.25max |
| GY-04-65Mn | 0.62-0.75 | 0.90-1.20 | 0.17-0.37 | 0.05max | 0.05max | 0.25max |
| GY-05-B2 | 0.75-0.85 | 0.70-0.90 | 0.17-0.35 | 0.05max | 0.05max | 0.40-0.60 |
| GY-06-B3 | 0.50-0.65 | 0.40-1.00 | 1.35-1.85 | 0.05max | 0.05max | 0.80-1.20 |
| GY-07-BL | 0.55-0.75 | 0.65-0.85 | 0.15-0.35 | 0.05max | 0.05max | 0.70-1.20 |
| GY-08-BG | 0.90-1.05 | 0.35-0.95 | 0.15-0.35 | 0.05max | 0.05max | 1.0-1.70 |
Grinding steel rods data
| DIA(mm) | 30-50 | 60-70 | 75-90 | 100-120 | 130 | hardness |
| Length | 3.0-6.0 | 3.0-5.82 | 3.0-6.0 | customizable | customizable | HRC35-60 HRC>60 |
|
We can produce the grinding steel rod according to the length of the customer’s mill.
|
||||||
PACKING & DELIVERY
1. Ocean shipping
2. Customers designated transportation mode.
3. Packing Details: A. Steel drums (850-930kgs/drum) b. Flexible container bags(1ton/bag)
4. Delivery Details: Within 15-20 days after received the payment or LC at sight.
