Introduction: Understanding the Key Differences in Grinding Balls
In mining operations, choosing between forged grinding balls and cast grinding balls can significantly affect both performance and costs. This guide explores the key differences between these two types of grinding media and provides insights into selecting the best option for optimal grinding performance and efficiency.
1. Core Manufacturing Process Differences

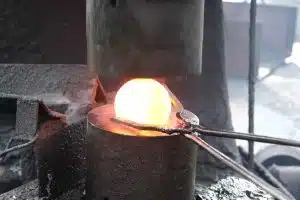

1.1 Forged Grinding Balls Production
-
Hot Forging Process: Steel is forged at 1200°C to form a dense grain structure.
-
Multi-Directional Pressing: 6-sided hydraulic forging minimizes internal porosity to ensure high quality.
-
Heat Treatment: Includes triple tempering and deep quenching, achieving 62-65 HRC surface hardness.

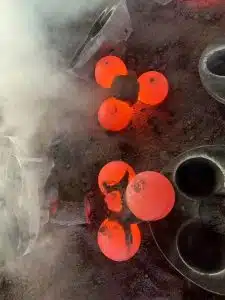

1.2 Cast Grinding Balls Production
-
Sand Casting Method: Molten steel is poured at 1600°C to form the balls.
-
Natural Cooling: This process creates dendritic crystal structures, resulting in weaker spots.
-
Surface Treatment: Basic quenching results in 55-58 HRC hardness.
Technical Comparison Table
| Parameter | Forged Grinding Balls | Cast Grinding Balls |
|---|---|---|
| Density (g/cm³) | 7.85-7.95 | 7.65-7.75 |
| Impact Toughness (J/cm²) | ≥15 | ≤8 |
| Roundness Deviation (mm) | ≤0.5 | ≤1.2 |
2. Critical Performance Comparison
2.1 Wear Resistance Test Data
-
Cement Grinding: Forged balls consume 0.8kg/ton, compared to 1.5kg/ton for cast balls (Huineng Cement 2023 test).
2.2 Breakage Rate Analysis
-
Forged Balls: <0.3% breakage rate, compliant with ISO 13517:2020.
-
Cast Balls: Breakage rate exceeds 1.2% due to shrinkage defects.
3. Cost-Effectiveness Analysis
3.1 Initial Purchase Cost
-
Forged Balls: 15-20% more expensive upfront but reduce total operating costs by 35% over time.
Conclusion: Making the Right Choice for Your Grinding Needs
Choosing the right grinding balls for your operation will depend on mineral hardness, equipment size, and long-term operational costs. Forged grinding balls are ideal for high-demand applications due to their superior performance, while cast grinding balls may be suitable for lighter-duty grinding.
